Northstar

SKU: 2683061ST

NORTHSTAR 12V 11.4 LPM NPT Pump - 2683061

NORTHSTAR 12V 11.4 LPM NPT Pump - 2683061

Regular price £114.95
Regular price Sale price £114.95
Sale Contact Us for Price/Lead Time

all prices exclude VAT 20%

VAT & Shipping calculated at checkout.

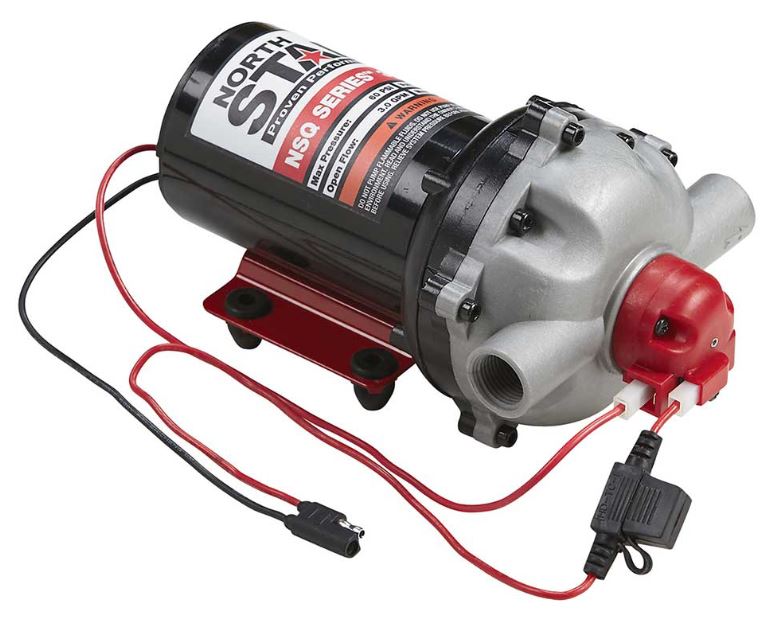

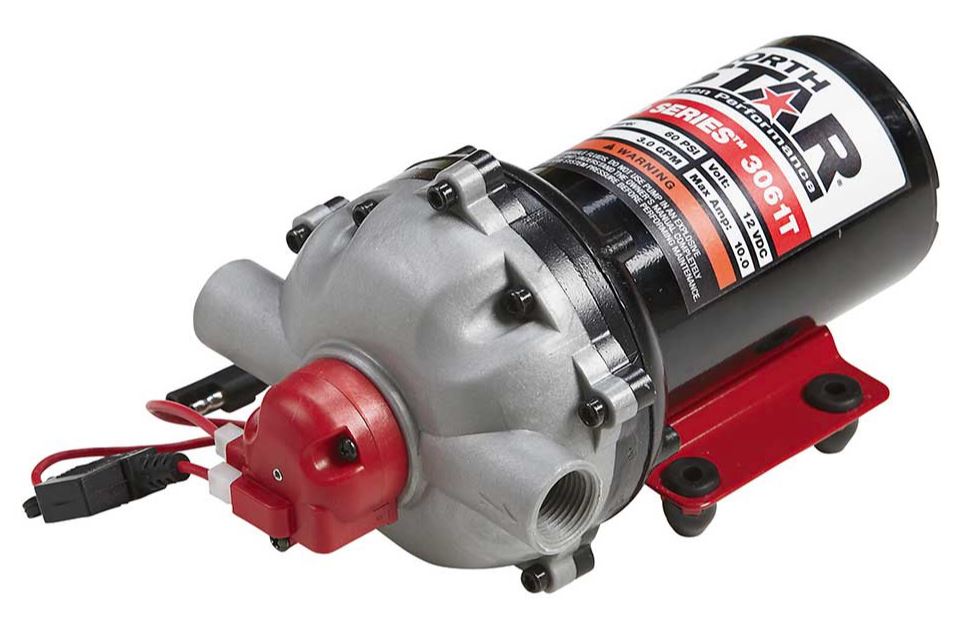

This high-end NorthStar® NSQ SeriesTMDiaphragm Pump upgrades your sprayer with innovative components and engineering for superior spot or broadcast spraying performance and quick-connect convenience.  100% continuous duty with no cool down period.

This NorthStar NSQ Sprayer Pump is packed with components that are designed to reduce wear and keep working, like a Honeywell MICRO SWITCHTM, a SantopreneTM diaphragm and a chemical-resistant fiberglass-reinforced polypropylene pump manifold.  The innovative smooth valve design provides faster primes.  It also has our unique pressure switch, designed to slowly cycle the pump to reduce switch and motor wear.  To conserve battery power, we gave it an automatic power switch that turns off when no flow is needed.  Compatible with Roundup® agricultural brand herbicide

Specifications

Model Number:

NTE#: 2683061ST

Voltage:

12V DC

Maximum Flow Rate:

11.4 liters/minute (3.0 gallons/minute)

Pressure Switch:

Shut-Off:          Factory set at 60 PSI ± 2 PSI

                        (4.1 BAR ± 0.14 BAR)

Hysteresis:       Varies with outlet conditions

                        11 PSI ± 3 PSI at minimum on/off cycling

                        6 PSI ± 2 PSI at maximum on/off cycling

Wetted Materials:

Plastics:                     Polypropylene, Nylon (PA66)

Diaphragm:                Santoprene

Valves/Seals:              Viton

Check Valve Spring:    304 stainless steel

Liquid Temperature:

60° C (140° F) maximum

Prime:

Self-priming up to 3.65m (12-ft.)

Ports:

NPT

Weight:

2.72 kg (6 lbs)

Duty Rating:

Continuous (S1)

Protection Rating:

IPX1

Approvals:

CE compliant.

View full details
  • Diaphragm Pumps - Add a filter!

    Shurflo and other manufacturer warranty is void if pump is used without a filter. Be sure to add one to your setup to keep debris out of the pump and extend its lifespan.

  • Replacing a no longer available unit?

    If you are looking to replace an old discontinued unit, please contact us and we will recommend the closest model currently available.
