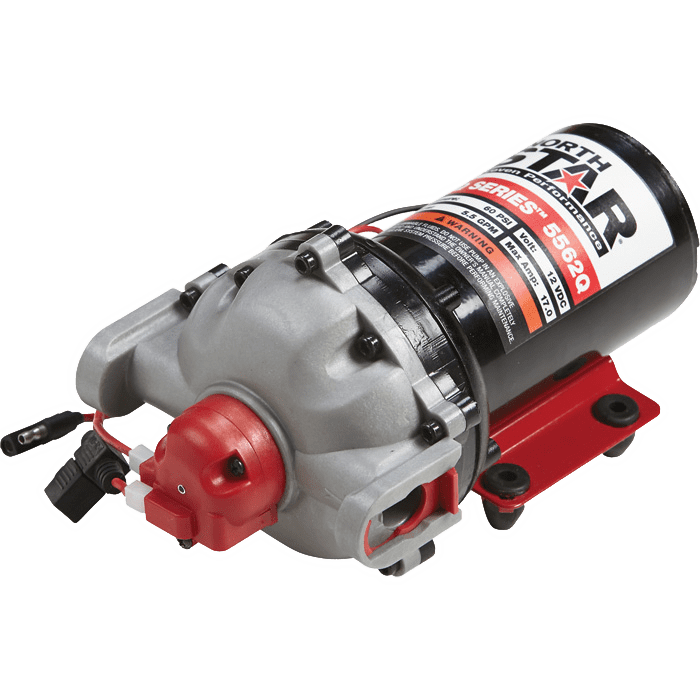

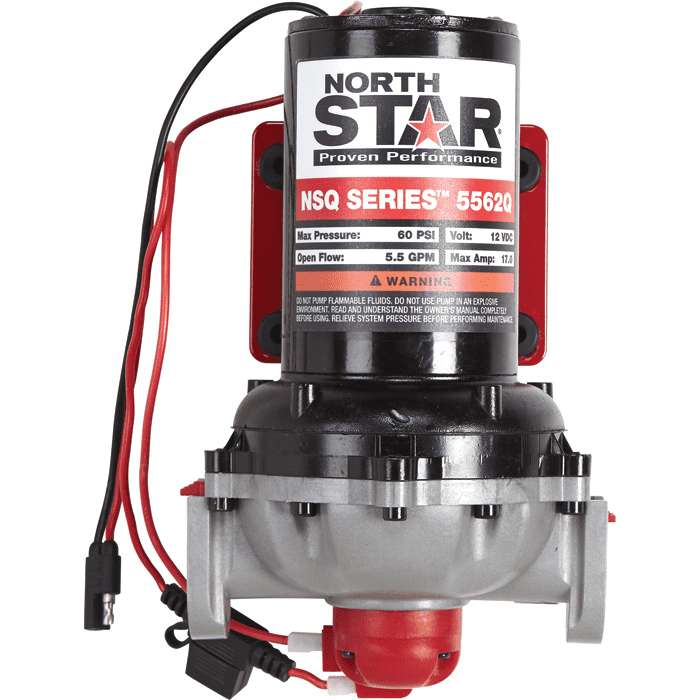

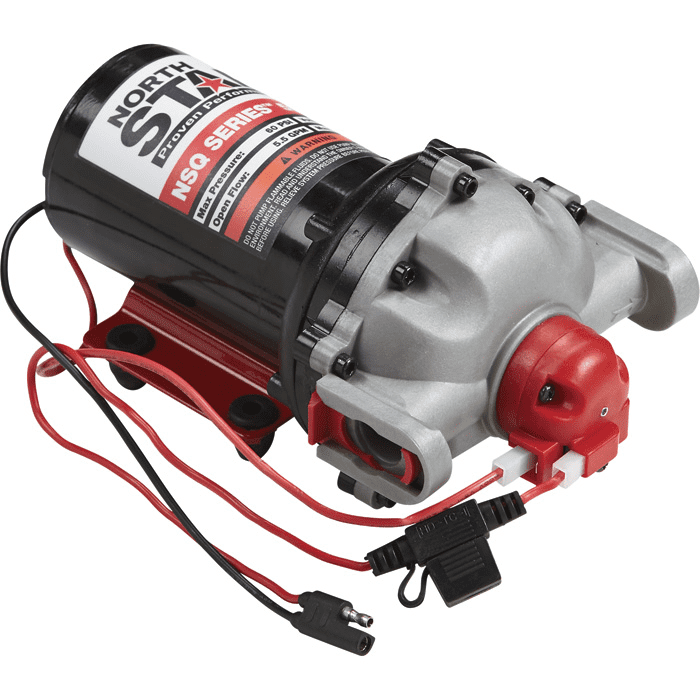

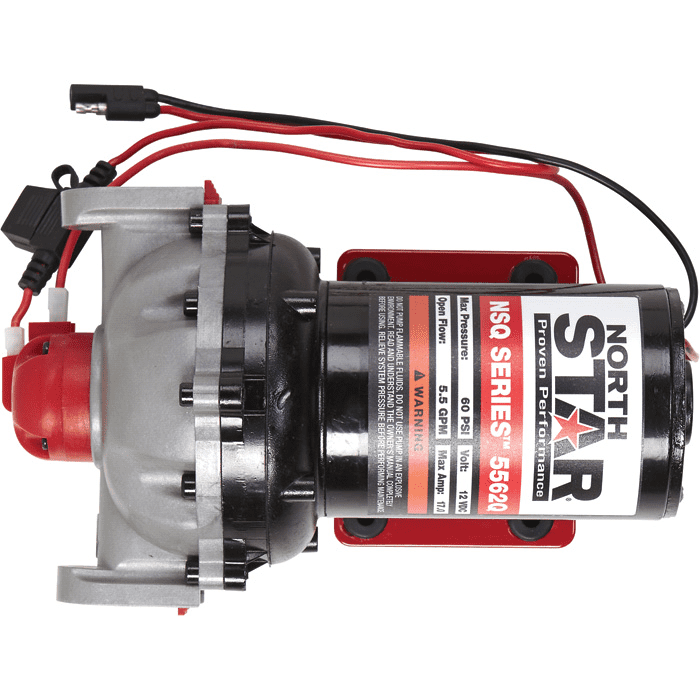

This high-end NorthStar® NSQ SeriesTM Diaphragm Pump upgrades your sprayer with innovative components and engineering for superior spot or broadcast spraying performance and quick-connect convenience.  100% continuous duty with no cool down period

This NorthStar NSQ Sprayer Pump is packed with components that are designed to reduce wear and keep working, like a Honeywell MICRO SWITCHTM, a Santoprene TM diaphragm and a chemical-resistant fiberglass-reinforced polypropylene pump manifold.  The innovative smooth valve design provides faster primes.  It also has our unique pressure switch, designed to slowly cycle the pump to reduce switch and motor wear.  To conserve battery power, we gave it an automatic power switch that turns off when no flow is needed.  Compatible with Roundup® agricultural brand herbicide

Specifications

Model Number:

NTE#:  2685562ST

Maximum Flow Rate:

20.8 liters/minute (5.5 gallons/minute)

Pressure Switch:

Shut-Off:          Factory set at 60 PSI ± 2 PSI

                        (4.1 BAR ± 0.14 BAR)

Hysteresis:       Varies with outlet conditions

                        11 PSI ± 3 PSI at minimum on/off cycling

                        6 PSI ± 2 PSI at maximum on/off cycling

Wetted Materials:

Plastics:                     Polypropylene, Nylon (PA66)

Diaphragm:                Santoprene

Valves/Seals:              Viton

Check Valve Spring:    304 stainless steel

Liquid Temperature:

60° C (140° F) maximum

Prime:

Self-priming up to 3.65m (12-ft.)

Ports:

19mm (3/4in.) Quick-Connect

Weight:

2.72 kg (6 lbs)

Duty Rating:

Continuous (S1)

Protection Rating:

IPX1

Approvals:

CE compliant
