Northstar

SKU: 26814101ST

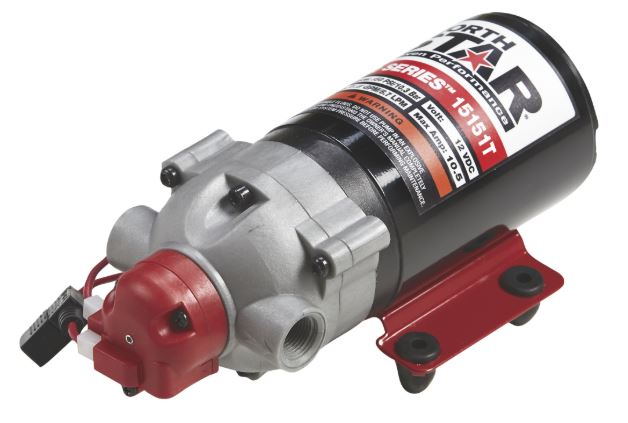

NORTHSTAR 12V 5.7 LPM NPT 100 PSI High Pressure Pump - 26814101

NORTHSTAR 12V 5.7 LPM NPT 100 PSI High Pressure Pump - 26814101

£75.00
£75.00
Sale Contact Us for Price/Lead Time

all prices exclude VAT 20%

VAT & Shipping calculated at checkout.

When pressure becomes more important than flow, this high-end NorthStar® NSQ Series™  12V pump upgrades your sprayer with innovative components and engineering for superior spot spraying  performance. Delivers 100% continuous duty rating with no cool down period required. Compatible with Roundup® agricultural herbicide.

26814101 (NPT)

12V DC

5.7 Litres/minute (1.5 gallons/minute)

Shut-off:
Factory set at 100 PSI, ± 2 PSI (6.9 BAR,  ±  0.14 BAR)

Hysteresis:
Varies with outlet conditions
11 PSI,  ± 3 PSI at minimum on/off cycling
6 PSI,   ±  2 PSI at maximum on/off cycling

Ports: 9.5mm (3/8in) NPT

  • Wetted Materials:

    Plastics:
    Polypropylene, Nylon (PA66)
    Diaphragm:
    Santonprene
    Valves/Seals:
    Viton
    Check Valve spring:
    304 stainless steel

    Prime:

    • Self-priming up to 2.45m (8-ft.)



View full details

  • Diaphragm Pumps - Add a filter!

    Shurflo and other manufacturer warranty is void if pump is used without a filter. Be sure to add one to your setup to keep debris out of the pump and extend its lifespan.

  • Replacing a no longer available unit?

    If you are looking to replace an old discontinued unit, please contact us and we will recommend the closest model currently available.
