THRU BEAM CROP DETECTOR

THRU BEAM CROP DETECTOR

£145.00
£145.00
Sale Contact Us for Price/Lead Time

all prices exclude VAT 20%

VAT & Shipping calculated at checkout.

This simple photo electric sensor can be mounted onto the pick-up and wired into the pump circuit to switch the application system on and off when you enter and leave work.



Specifications:

  • working voltage: 10-30VDC
  • output type : PNP NO
  • wave length ：650nm
  • Work current : ＜200mA
  • Response time : 2.5ms
  • Detect objects: opaque.
  • Sensing Distance: 0-20m
  • Lead length: 150CM
  • Material shell: Brass galvanised
  • Laser beam, red visible beam
  • Dimension : M12x55mm
  • Work temperature : -35~65°C
  • Work humidity : 35~95%RH

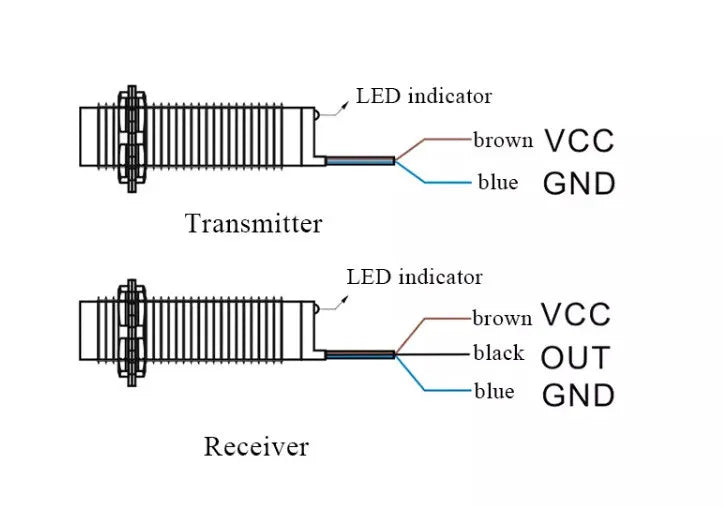

Please see photos for wiring. Instruction manual is not included.


Package Includes:

  • 1x Laser Photoelectric Sensor (1 laser emitter and 1 laser detector)
  • 2x Mounting brackets (no screws included)
